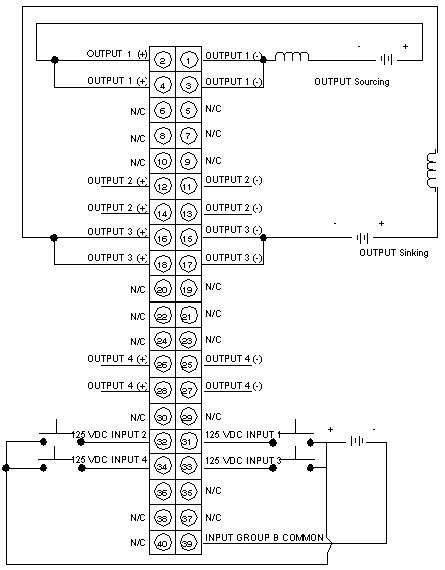

The following figure shows the 140 DDM 690 00 wiring diagram.
1.
N / C = Not Connected.
2.
Each output has two terminals for multiple wire connections.
3.
When field wiring the I/O modules, the maximum wire size that should be used is 1-14 AWG or 2-16 AWG; the minimum size is 20 AWG.
NOTE: The tightening torque must be between 0.5 Nm and 0.8 Nm.
NOTICE
DESTRUCTION OF ADAPTER
  • Before tightening the locknut to the torque 0.50...0.80 Nm, be sure to properly position the right-angle F adapter connector.
  • During tightening, be sure to maintain the connector securely.
  • Do not tighten the right-angle F adapter beyond the specified torque.
Failure to follow these instructions can result in equipment damage.
WARNING
UNINTENDED EQUIPMENT OPERATION
Do not reverse polarities of the output points. Reverse polarity will turn an output point ON.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
