Version Levels Table
The following table shows the version levels for the Module Types.
Products
Minimum Version Level (see label illustration below)
User Action Required
CPUs and NOMs
< V02.20
Executive upgrade to ≥ V02.10
≥ V02.20
None
RIOs
< V02.00
Module upgrade
≥ V02.00 and < V02.20
Executive upgrade to ≥ V01.10
≥ V02.20
None
DIOs
< V02.10
Module upgrade
≥ V02.10
None
NOTE: The version label, see figure, is found on the top front of the module.

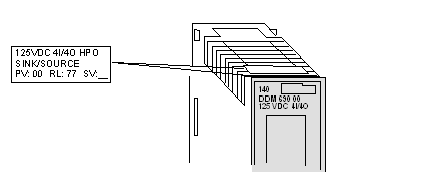

Version Label Figure
The following figure shows the version number location.
Illustration
The following table shows the LED indicators for the 140 DDM 690 00 module.
Descriptions
The following table shows the LED descriptions for the 140 DDM 690 module.
LEDs
Color
Indication when ON
Active
Green
Bus communication is present.
F
Red
Over current condition on any point.
1 ... 4 (left columns)
Green
The indicated output point is turned ON.
1 ... 4 (middle columns)
Red
The indicated input point has an over current condition.
1 and 4 (right columns)
Green
The indicated input point is turned ON.
