Fuses
Fuses
Internal
5.0 Amp fuse per group
External
If desired, a 3/4 A, 250 V fuse
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Before accessing the fuses,
  • Remove the power to the module (pre-actuators), and
  • disconnect the terminal block.
  • Always use a properly rated voltage sensing device at all line and load fuse clips to confirm power is off.
Failure to follow these instructions will result in death or serious injury.
Illustration

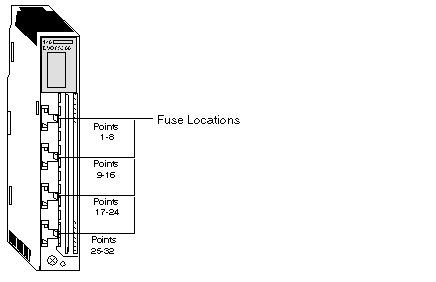

The following figure shows the 140 DVO 853 00 module Fuse Locations.
