Connecting a Discrete I/O module to a TELEFAST 2 base interface
(Original Document)
About us
At a Glance
The connection of a Discrete I/O module with a HE10 connector to the TELEFAST 2 connection base is performed by way of a multi-strand sheathed ribbon cable or connection cable.
Illustration

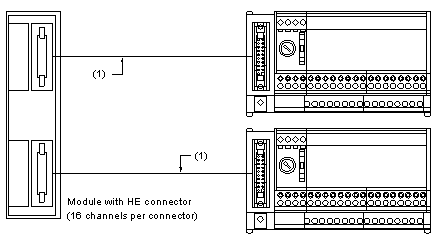

The following diagram shows the connection of a Discrete I/O module with a HE10 connector to a TELEFAST 2 connection base.
(1)
TSX CDP •02 ribbon cable or TSX CDP ••3 cable.
Illustration

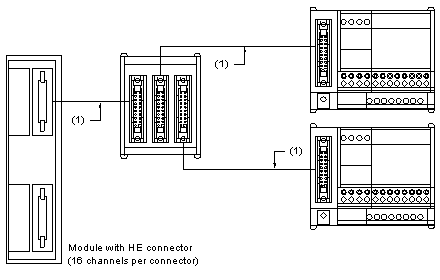

The following diagram shows an example specific to the connection of 16 channels in 2 x 8 channel groups via the ABE-7ACC02 adapter base.
(1)
TSX CDP •02 ribbon cable or TSX CDP ••3 cable.
