Connecting discrete input/output modules to TELEFAST interfaces for connecting and adapting fast wiring HE10 connectors, is done with the aid of:
TSX CDP 102/202/302 Connection Cable
The 28 gauge connection cable (0.08 mm2) comes in three different lengths:
-
3 ft 3.4 in length: TSX CDP 102,
-
6 ft 6.8 in length: TSX CDP 202,
-
9 ft 10.2 in length: TSX CDP 302.
This cable is made up of 2 HE10 connectors and a multi-stranded sheathed ribbon cable, where each wire has a cross-section area of 0.08 mm2.
Given the small area of each of the wires, you are advised to only use it for low current inputs or outputs (< 100 mA per input or output).
TSX CDP 053/103/203/303/503 Connection Cable
The 22 gauge connection cable (0.34 mm2) comes in five different lengths:
-
1 ft 7.7 in length: TSX CDP 053,
-
3 ft 3.4 in length: TSX CDP 103,
-
6 ft 6.8 in length: TSX CDP 203,
-
9 ft 10.2 in length: TSX CDP 303,
-
16 ft 5 in length: TSX CDP 503.
This cable is made up of 2 sheathed HE10 connectors, and a cable with a cross-section of 0.34 mm 2, which can take higher currents (> 500 mA).

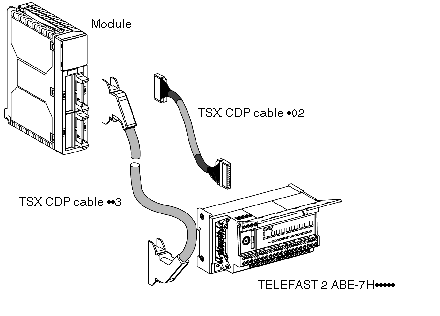

The illustration below shows the two types of connection to the TELEFAST interface via multi-strand cable or other cable.
NOTE: Check the consistency between the rating of the fuse on board the TELEFAST 2 and the fuse which is to be used on the inputs/outputs (see Connecting modules).
