This is an overview of the actuator connections on the TELEFAST 2 ABE-7P16F310 base, 16 relay outputs, potential free contact, relays not provided.

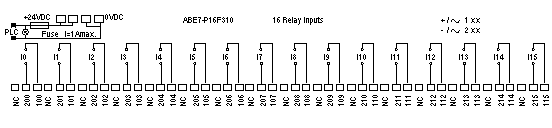

Description of the connection terminal blocks.

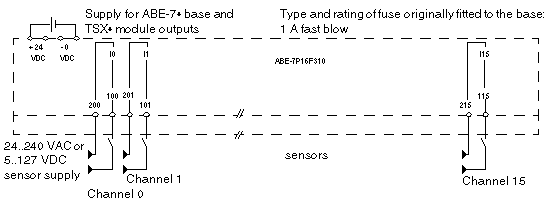

Output connection functions.
NOTE: Provide one protection fuse per group of sensors if supplied from the same voltage.
