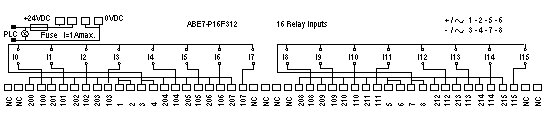

This is an overview of the actuator connections on the TELEFAST 2 ABE-7P16F312 base, 16 relay outputs, distribution of the 2 polarities per 8 channel group, relays not provided.
Description of the connection terminal blocks.

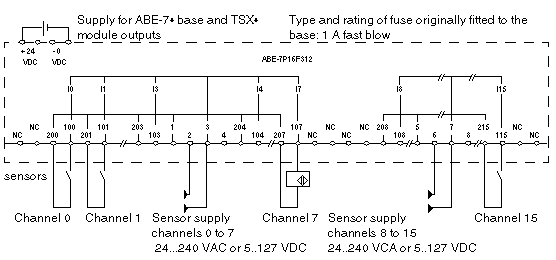

Output connection functions.
NOTE: Plan for a protection fuse for the sensor supply.
