TELEFAST 2 ABE-7P16T318 connection base
(Original Document)
About us
At a Glance
This is an overview of the actuator connections on the TELEFAST 2 ABE-7P16T318 base, 16 relay outputs, 1 OF, distribution of the 2 polarities per group of 4 channels, 1 fuse and 1 isolator per channel, relays not provided.
Illustration

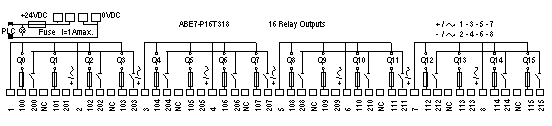

Description of the connection terminal blocks.
Illustration

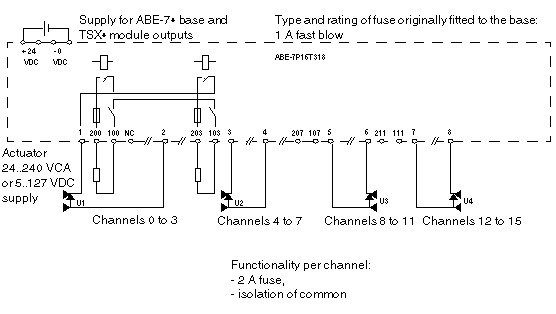

Output connection functions.
NOTE: Provide a protection fuse on the actuator supply.
Protection of relay contacts:
  • a protection circuit must be mounted onto the terminals of each actuator:
    • RC or MOV circuit in the case of alternating current;
    • discharge diode for direct current.
