TELEFAST 2 ABE-7R16T332/P16T332 connection bases

At a Glance

This is a description of the actuator connections on:

the TELEFAST 2 ABE-7R16T332 base, 16 relay outputs, 1 OF, distribution of the 2 polarities by 4 channel group, with electromagnetic relay;
the TELEFAST 2 ABE-7P16T332 base, 16 relay outputs, 1 OF, distribution of the 2 polarities by 4 channel group, relays not provided.

Illustration

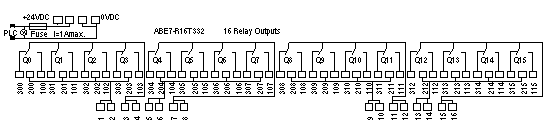

Description of the connection terminal blocks.

Illustration

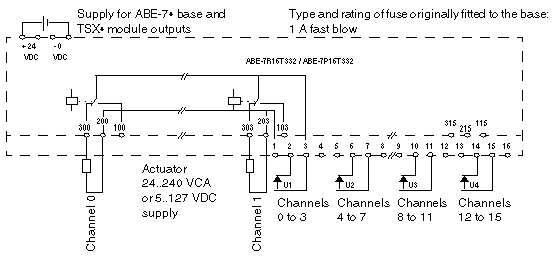

Output connection functions.

NOTE: Provide one protection fuse per actuator or per group if fed from the same voltage.

Protection of relay contacts:

a protection circuit must be mounted onto the terminals of each actuator:
- RC or MOV circuit in the case of alternating current;
- discharge diode for direct current.
