TELEFAST 2 ABE-7R16T330/P16T330 connection bases

At a Glance

This is a description of the actuator connections on:

the TELEFAST 2 ABE-7R16T330 bases, 16 relay outputs, potential free contact, with electromagnetic relay;
the TELEFAST 2 ABE-7P16T330 bases, 16 relay outputs, potential free contact, relay not provided.

Illustration

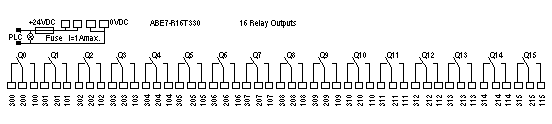

Description of the connection terminal blocks.

ABE-7R16T330/P16T330

16 output relays, 1 OF, potential free contact, ABE-7R16T330 with electromagnetic relays, ABE-7P16T330 relays not provided.

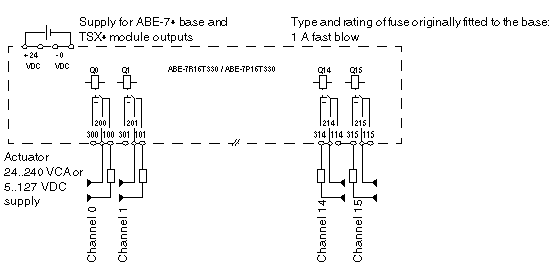

Illustration

Output connection functions.

NOTE: Provide one protection fuse per actuator or per group if fed from the same voltage.

Protection of relay contacts:

a protection circuit must be mounted onto the terminals of each actuator:
- RC or MOV circuit in the case of alternating current;
- discharge diode for direct current.
