TELEFAST 2 ABE-7R16T370 connection base
(Original Document)
About us
At a Glance

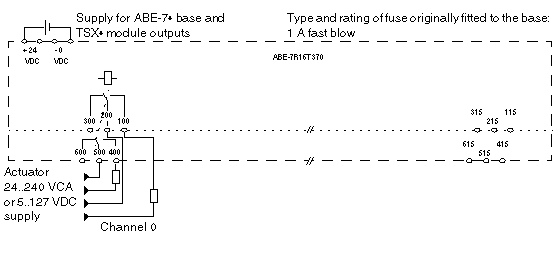

This is an overview of the actuator connections on the TELEFAST 2 ABE-7R16T370 base, 16 relay outputs, 2 OF, potential free contact.
Illustration

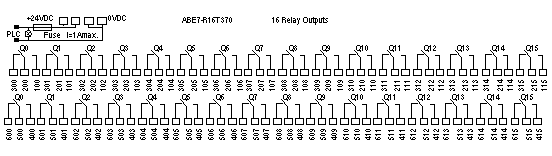

Description of the connection terminal blocks.
Illustration
Output connection functions.
NOTE: Provide one protection fuse per actuator or per group if fed from the same voltage.
Protection of relay contacts:
  • a protection circuit must be mounted onto the terminals of each actuator:
    • RC or MOV circuit in the case of alternating current;
    • discharge diode for direct current.
