This is an overview of the actuator connections on the TELEFAST 2 ABE-7P16T215 base, 16 relay outputs, 1 F, distribution of 2 polarities per group of 8 channels, 1 fuse per channel, relay not provided.
Illustration

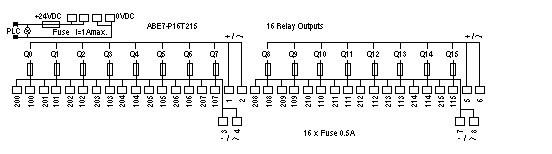

Description of the connection terminal blocks.
Illustration

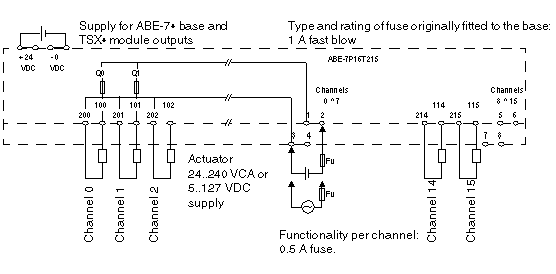

Output connection functions.
Fu
Fuse rating according to the load.
NOTE: Protection of relay contacts:
a protection circuit must be mounted onto the terminals of each actuator:
RC or MOV circuit in the case of alternating current;
