Reflex function block: Burst
(Original Document)
About us
Role
This function is used to generate a pulse stream of a time length 2 x ti.
Structure
The table below shows the block's different interfaces.
Name
Meaning
Illustration
E
Block's input.
x
Block's physical output.
x Aux
Block's internal auxiliary output.
Operation
This table describes the different operating phases of the Burst function block.
Phase
Description
1
On the rising edge of input E :
  • oscillation of output x for ni periods of time,
  • input x Aux changes to 1,
2
When number of periods ni is reached, output x Aux changes to 0.
If output E changes to 0 before time periods ni have elapsed:
  • the oscillation stops at the low status of outputx,
  • input x Aux changes to 0,

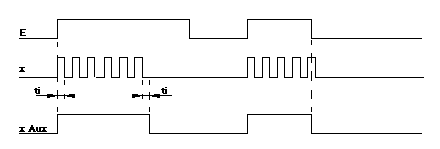

Illustration
The illustration below shows the trend diagram of the burst function block.
