Characteristics

Altitude Operating Conditions

The characteristics in the table below apply to the modules BMX DRC 0805 and BMX DRC 0805H for use at altitude up to 2000 m (6560 ft). When the modules operate above 2000 m (6560 ft), apply additional derating.

For detailed information, refer to chapter Operating and Storage Conditions.

General Characteristics

This table presents the general characteristics for the BMX DRC 0805 and BMX DRC 0805H modules:

Module type			NO/NC relay outputs for alternating and direct current
Rated range	Alternating		24...240 Vac
	Direct		24...125 Vdc
Voltage range	Alternating		19...264 Vac (47...63 Hz)
	Direct		5...150 Vdc
Operating temperature	BMX DRC 0805		0 °C to 60 °C (32 °F to 140 °F) with derating (see hereafter).
	BMX DRC 0805H		-25 °C to 70 °C (-13 °F to 158 °F) with derating (see hereafter).

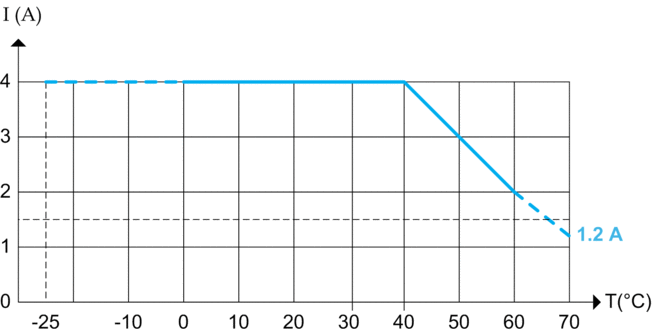

Thermal current	Apply the following derating curve to the thermal current (in A) versus ambient temperature (in °C): NOTE: Apply additional derating if the module is wired with preassembled cordset BMX FTW ••5.
Minimum switching load			5 Vdc / 10 mA
Alternating current load in resistive mode (AC12)	Voltage		24 Vac	48 Vac	100...120 Vac	200...250 Vac
	Switching power below 60 °C (140 °F)		48 VA⁽⁷⁾	48 VA⁽⁸⁾ 96 VA⁽⁶⁾	110 VA⁽⁸⁾ 220 VA⁽⁶⁾	220 VA⁽⁸⁾ 500 VA⁽⁶⁾
	Maximum switching power of hardened module at 60...70 °C (140...158 °F)		28.8 VA⁽⁷⁾	28.8 VA⁽⁸⁾ 57.6 VA⁽⁶⁾	66 VA⁽⁸⁾ 132 VA⁽⁶⁾	132 VA⁽⁸⁾ 300 VA⁽⁶⁾
Alternating current load in inductive mode (AC15) (Power factor = 0.4)	Voltage		24 Vac	48 Vac	100...120 Vac	200...250 Vac
	Switching power below 60 °C (140 °F)		10 VA⁽¹⁰⁾ 24 VA⁽⁹⁾ 48 VA⁽⁶⁾ 72 VA^(4)(13)	10 VA⁽¹⁰⁾ 24 VA⁽⁹⁾ 48 VA⁽⁸⁾ 96 VA⁽⁵⁾ 144 VA^(3)(13)	10 VA⁽¹¹⁾ 50 VA⁽⁸⁾ 110 VA⁽⁷⁾ 220 VA⁽⁴⁾ 360 VA^(2)(13)	10 VA⁽¹¹⁾ 50 VA⁽⁹⁾ 110 VA⁽⁷⁾ 220 VA⁽⁶⁾ 500 VA⁽³⁾ 750 VA^(1)(13)
	Maximum switching power of hardened module at 60...70 °C (140...158 °F)		6 VA⁽¹⁰⁾ 14.4 VA⁽⁹⁾ 28.8 VA⁽⁶⁾	6 VA⁽¹⁰⁾ 14.4 VA⁽⁹⁾ 28.8 VA⁽⁸⁾ 57.6 VA⁽⁵⁾	6 VA⁽¹¹⁾ 30 VA⁽⁸⁾ 66 VA⁽⁷⁾ 132 VA⁽⁴⁾	6 VA⁽¹¹⁾ 30 VA⁽⁹⁾ 66 VA⁽⁷⁾ 132 VA⁽⁶⁾ 300 VA⁽³⁾
Direct current load in resistive mode (DC12) (L:R = 1 ms	Voltage		24 Vdc	48...60 Vdc	100...125 Vdc
	Switching power below 60 °C (140 °F)		24 W⁽⁷⁾ 48 W⁽⁶⁾	40 W⁽⁶⁾	45 W⁽⁵⁾
	Maximum switching power of hardened module at 60...70 °C (140...158 °F)		14.4 W⁽⁷⁾ 28.8 W⁽⁶⁾	24 W⁽⁶⁾	45 W⁽³⁾
Direct current load in inductive mode (DC13) (L:R = 15 ms)	Voltage		24 Vdc	48...60 Vdc	110...125 Vdc
	Switching power below 60 °C (140 °F)		10 W⁽⁵⁾ 24 W⁽³⁾ 48 W⁽¹⁾	40 W⁽¹⁾	15 W⁽⁵⁾
	Maximum switching power of hardened module at 60...70 °C (140...158 °F)		6 W⁽⁵⁾ 14.4 W⁽³⁾ 28.8 W⁽¹⁾	24 W⁽¹⁾	15 W⁽¹⁾
Mechanical operations			20,000,000 minimum
Response time	Activation (to NO)		<10 ms
	Deactivation (to NC)		<13 ms
Surge current maximum	10 A capacitive		t = 10 ms
Built-in protection	Against inductive over voltage in AC modes		None. Fit an RC circuit or a ZNO type over voltage limiter in parallel on each output channel appropriate to the voltage in use.
	Against inductive over voltage in DC modes		None. Fit a discharge diode on each output channel.
	Against short-circuits and overloads		None. Fit a fast-blow fuse on each output channel or channel group. NOTE: The current capability of fuse depends on the maximum switching load.
Reliability	MTBF for continuous operation in hours at ambient temperature 30 °C (86 °F)		2,683,411
Power dissipation⁽¹²⁾			3.6 W + 0.03 x (I1² + I2² + ...+ I8²) Where I1, I2,....I8 is the load current for each channel.
Dielectric strength (at 50/60 Hz for 1 min.)	Channel to X-bus		3000 Vac
	Channel to channel		2000 Vac
	Channel to protective earth (PE)		2000 Vac
Resistance of insulation (at 500 Vdc)	Channel to X-bus		>10 MΩ
	Channel to channel		>10 MΩ
Power supply consumption	3.3 V	Typical	40 mA
		Maximum	75 mA
	24 V⁽¹²⁾	Typical	101 mA
		Maximum	137 mA
(1): 0.04 x 10⁶ cycles, (2): 0.05 x 10⁶ cycles, (3): 0.06 x 10⁶ cycles, (4): 0.07 x 10⁶ cycles, (5): 0.1 x 10⁶ cycles, (6): 0.15 x 10⁶ cycles, (7): 0.2 x 10⁶ cycles, (8): 0.3 x 10⁶ cycles, (9): 0.5 x 10⁶ cycles, (10): 0.7 x 10⁶ cycles, (11): 1 x 10⁶ cycles, (12): All channel at 1, (13): Below 50 °C (122 °F)
