Introduction
40-pin connector modules are connected to sensors, pre-actuators or terminals using a cable designed to enable direct wire to wire transition of the module’s inputs/outputs.
| WARNING | |
|---|---|
UNEXPECTED EQUIPMENT OPERATION Use only a connector that is designed for a specific module.
Plugging the wrong connector can cause an unexpected behavior of the
application. Failure to follow these instructions can result in death, serious injury, or equipment damage. | |
BMX FTW ••5 Cable Description
The BMX FTW ••5 cables are pre-assembled cord set, made up of:
At one end, a compound-filled 40-pin BMX FTB 4020 terminal block (non-gold plated spring terminal block) from which extend 1 cable sheath containing 40 wires,
At the other end, free wire ends differentiated by color code.
| WARNING | |
|---|---|
UNINTENDED EQUIPMENT OPERATION Do not use BMX FTW ••5 cable with hardened module. Failure to follow these instructions can result in death, serious injury, or equipment damage. | |

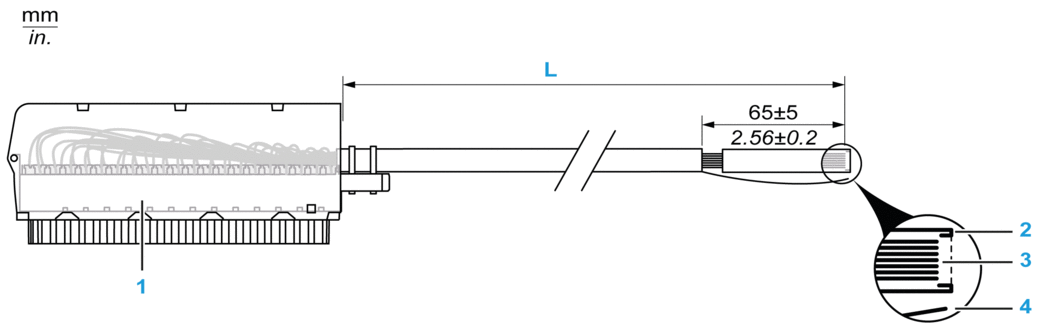

The figure below shows the BMX FTW •05 cables:
1 BMX FTB 4020 Terminal block
2 First of external sheath
3 Wires not stripped
4 Strand of nylon allowing the cable sheath to be stripped easily.
L Length according to the part number.
The connection cables come in two different lengths:
3 m (9.84 ft): BMX FTW 305
5 m (16.40 ft): BMX FTW 505
Connection of BMX FTW ••5 Cables

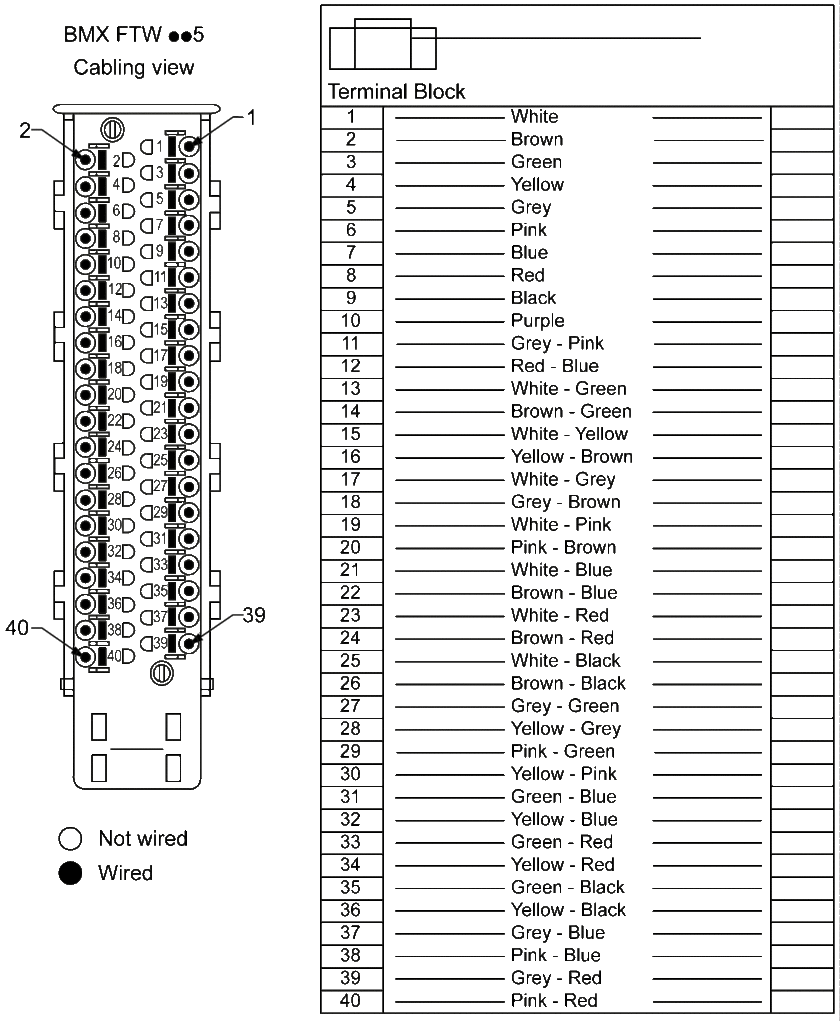

The following diagram shows the connections and the color-coded according to DIN47100:
BMX FTW ••5 Cables Characteristics
This table presents the general characteristics:
Characteristics |
Values |
|
|---|---|---|
Cable |
Sheath material |
PVC |
LSZH status |
No |
|
Application type |
Maximum voltage |
300 Vrms |
Conductor description |
Number of conductors |
40 |
Gauge |
0.34 mm2 (22 AWG) |
|
Material |
Tinned copper |
|
Maximum current |
2 A below 30 °C (86 °F) 0.8 A below 70 °C (158 °F) |
|
Electrical |
Dielectric withstand |
2500 V for 1 min. |
Environmental |
Operating temperature |
-25...70 °C (-13....158 °F) |
Applicable standards |
DIN47100 |
|
BMX FTW ••5 Cables Installation
| DANGER | |
|---|---|
HAZARD OF ELECTRIC SHOCK Turn off all power to sensor and pre-actuator devices
before connection or disconnection of the terminal block. Failure to follow these instructions will result in death or serious injury. | |

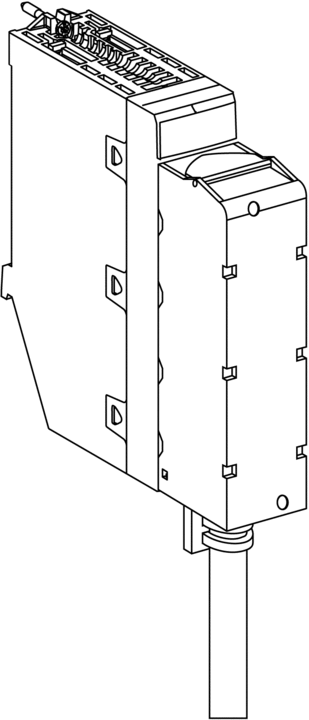

The following diagram shows the pre-assembled cable connected to the module:
For more detailed information, refer to the topic Fitting a 40-pin Terminal Block to a Module.
