Introduction
20-pin connector modules are connected to sensors, pre-actuators or terminals using a cable designed to enable direct wire to wire transition of the module’s inputs/outputs.
| WARNING | |
|---|---|
UNEXPECTED EQUIPMENT OPERATION Use only a connector that is designed for a specific module.
Plugging the wrong connector can cause an unexpected behavior of the
application. Failure to follow these instructions can result in death, serious injury, or equipment damage. | |
BMX FTW ••1 Cable Description
The BMX FTW •01 cables are pre-assembled cord set, made up of:
At one end, a compound-filled 20-pin BMX FTB 2020 terminal block from which extend 1 cable sheath containing 20 wires,
At the other end, free wire ends differentiated by color code.

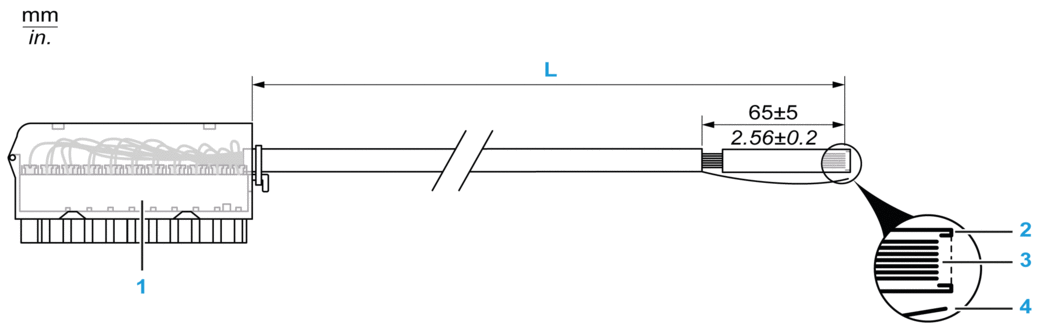

The figure below shows the BMX FTW •01 cables:
1 BMX FTB 2020 Terminal block
2 First of external sheath
3 Wires not stripped
4 Strand of nylon allowing the cable sheath to be stripped easily.
L Length according to the part number.
The connection cables come in three different lengths:
3 m (9.84 ft): BMX FTW 301
5 m (16.40 ft): BMX FTW 501
10 m (32.80 ft): BMX FTW 1001
Connection of BMX FTW ••1 Cables

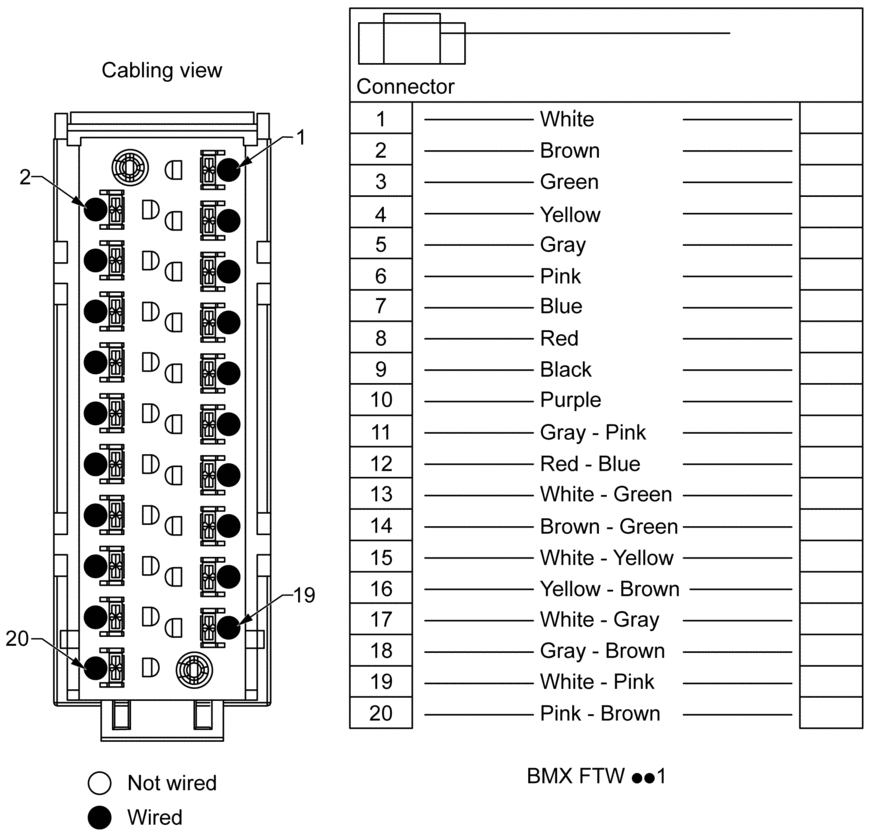

The following diagram shows the connection of the BMX FTW ••1 cable:
BMX FTW ••1 Cables Characteristics
This table presents the general characteristics:
Characteristics |
Values |
|
|---|---|---|
Cable |
Sheath material |
PVC |
LSZH status |
No |
|
Conductor description |
Number of conductors |
20 |
Gauge |
0.34 mm2 (22 AWG) |
|
Material |
Tinned copper |
|
Environmental |
Operating temperature |
-25...70 °C (-13....158 °F) |
Applicable standards |
DIN47100 |
|
Cable Installation
| DANGER | |
|---|---|
HAZARD OF ELECTRIC SHOCK Turn off all power to sensor and pre-actuator devices
before connection or disconnection of the terminal block. Failure to follow these instructions will result in death or serious injury. | |

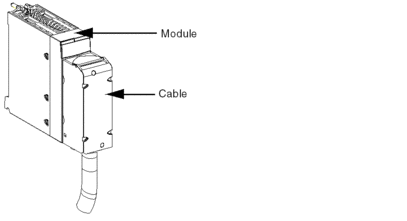

The following diagram shows the pre-assembled cable connected to the module:
For more detailed information, refer to the topic Fitting a 20-pin Terminal Block to a Module.
