At a Glance
The inputs/outputs of discrete 40-pin connector modules are connected to TELEFAST quick-wiring connection and adaptation interfaces using specific cables for 40-pin to HE10 connectors.
Illustration

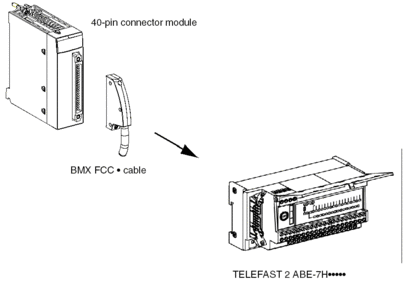

The drawing below shows the connection of a discrete 40-pin connector module to a TELEFAST interface.
BMX FCC ••• Connection Cables
The cables designed for connecting 40-pin connectors to 1xHE10 come in 6 different lengths:
0.5 meters, 20 wires: BMX FCC 051
1 meter, 20 wires: BMX FCC 101
2 meters, 20 wires: BMX FCC 201
3 meters, 20 wires: BMX FCC 301
5 meters, 20 wires: BMX FCC 501
10 meters, 20 wires: BMX FCC 1001
The cables designed for connecting 40-pin connectors to 2xHE10 come in 6 different lengths:
0.5 meters, 20 wires: BMX FCC 053
1 meter, 20 wires: BMX FCC 103
2 meters, 20 wires: BMX FCC 203
3 meters, 20 wires: BMX FCC 303
5 meters, 20 wires: BMX FCC 503
10 meters, 20 wires: BMX FCC 1003
Connection of BMX FCC ••• Cables

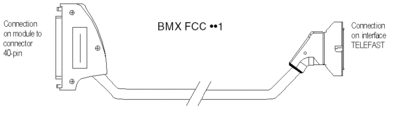

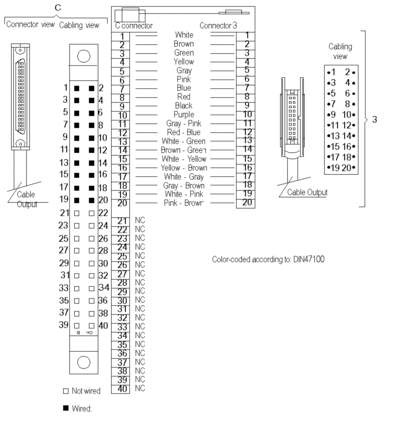

The diagram below shows the connection of BMX FCC ••1 cables.

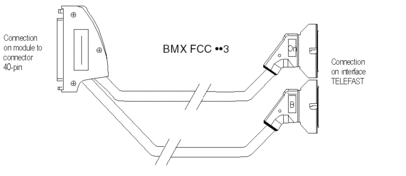

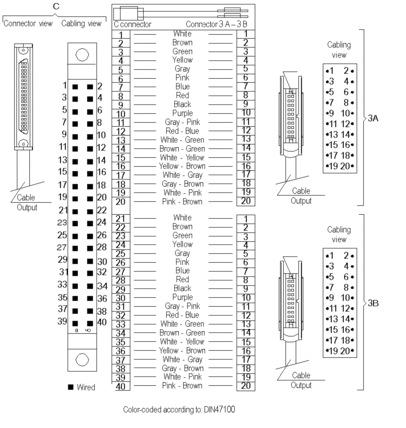

The diagram below shows the connection of BMX FCC ••3 cables.
| WARNING | |
|---|---|
UNEXPECTED EQUIPMENT OPERATION Do not exceed the maximum tightening torque. Excessive
torque may result in wire breakage, resulting in poor or intermittent
connection. Failure to follow these instructions can result in death, serious injury, or equipment damage. | |
BMX FCC ••• Cables Characteristics
This table presents the general characteristics:
Characteristics |
Values |
|
|---|---|---|
Cable |
Sheath material |
PVC |
LSZH status |
No |
|
Conductor description |
Number of conductors |
|
Gauge |
0.34 mm2 (22 AWG) |
|
Material |
Tinned copper |
|
Environmental |
Operating temperature |
-25...70 °C (-13....158 °F) |
Applicable standards |
DIN47100 |
|
