In combined up counting/down counting mode, comparisons are possible with:
two thresholds (0 and 1 threshold ),
and two setpoint values (high and low).
There are therefore 8 possible comparisons.
Operation

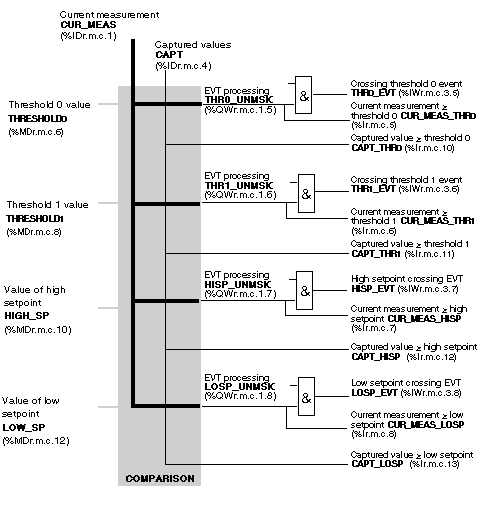

The figure below illustrates the operation of comparisons available in up counting / down counting mode in TSX CTY 2A /4A modules. The relevant language objects are described in the implicit objects section.
