Comparisons in down counting
In down counting only mode, a single possibility is autorized:
Comparisons in up counting
In up counting only mode, three possibilities are offered:
-
comparison of the current value to the 0 threshold,
-
comparison of the current value to the 1 threshold,
-
comparison of the current value to the high setpoint.

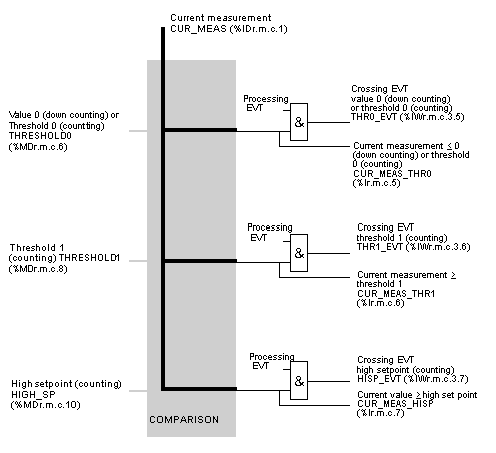

The diagram below illustrates the operation of the comparisons available in up counting only and down counting only modes in the TSX CTY 2A/4A modules. The associated language objects are described in the
default objects section.
