Connecting an encoder with a TSX TAP S15 24 accessory
(Original Document)
About us
General
A specific cable, supplied by the manufacturer of the encoder, is required for connecting an encoder using an auxiliary TSX TAP S15 24.
Illustration

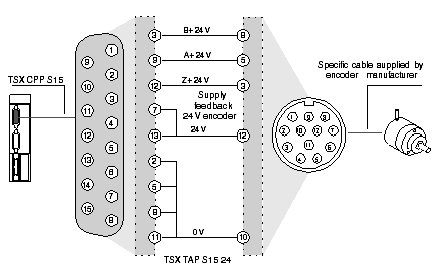

The pinout of TSX TAP S15 24 is as follows:
This type of connection is compatible with encoders with a 24V supply (Heidenheim, Hengstler, Codechamp, Ivo, Ideacod, etc.).
