TSX CDP 301 and TSX CDP 501 pre-wired strands
These pre-wired strands (or strips) make it possible to connect the sensors, pre-actuators or terminals directly to the counting modules. They comprise 20 gauge-22 wires (0.34m2) and are fitted with an HE10 connector at one end. The free wires at the other end are labeled with a color code according to the DIN 47100 standard.

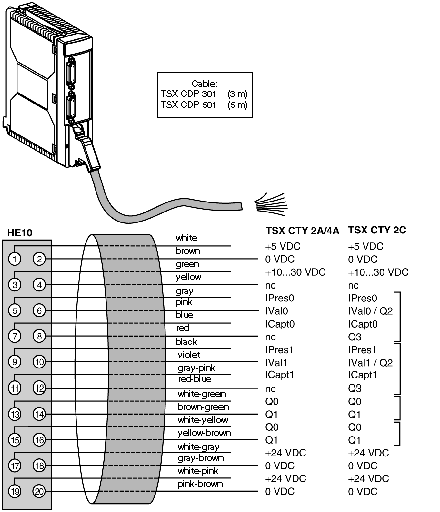

The correspondence between the color of the wires and the pin number of the HE10 connector is as follows:
TSX CDP 102, TSX CDP 202 and TSX CDP 302 connection cables
These stranded and clad connection cables make it possible to connect the HE10 connector of a counting module to a TELEFAST 2 (1) connection interface. They are made up of a stranded, flat cable and clad with gauge-28 wires (0.08mm2), and are fitted with an HE10 connector at each end.
Given the small area of each of the wires, you are advised to only use these connection cables for low current inputs or outputs (< 100mA per input or output).
3 connection cable lengths are offered:
TSX CDP 053/103/203/303/503 connection cable
These connection cables make it possible to connect the HE10 connector of a counting module to a TELEFAST 2 (1) connection interface. They are made up of a cable with gauge-22 wires (0.34 mm2), and are fitted with a compound-filled HE10 connector at each end.
These cables allow higher levels of current to enter (< 500mA) than connection cables.
5 cable lengths are offered:
