Example of connection: 4 TELEFAST are connected on the same channel
(Original Document)
About us
Illustration

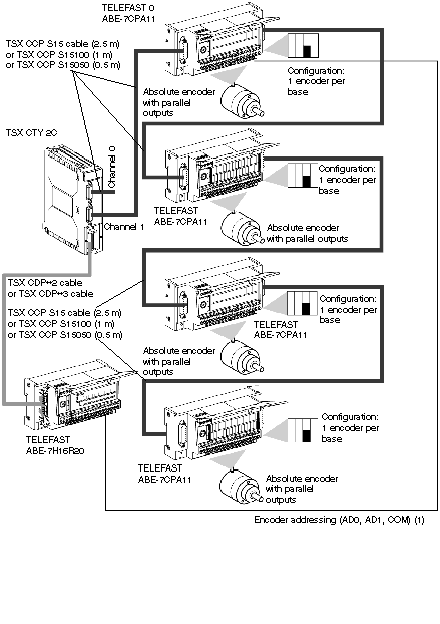

This diagram illustrates the connection of 4 TELEFAST on the same channel:
Addressing the encoders
(1) Addressing the TELEFAST encoders is as follows:
AD1
AD0
Action
0
0
Reading the TELEFAST 0 encoder
0
1
Reading the TELEFAST 1 encoder
1
0
Reading the TELEFAST 2 encoder
1
1
Reading the TELEFAST 3 encoder
