Example of connection: 3 TELEFAST are connected on the same channel
(Original Document)
About us
Illustration

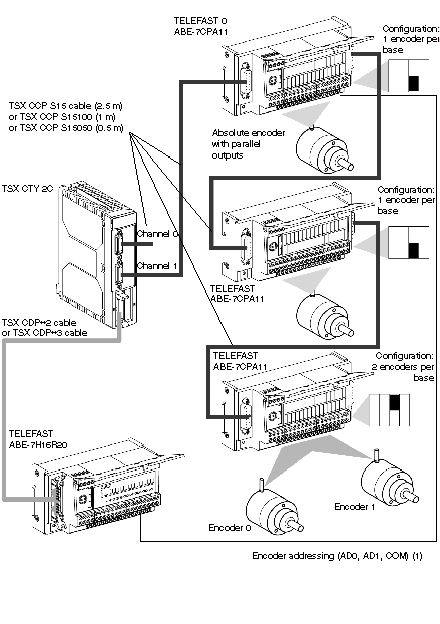

This diagram illustrates the connection of 3 TELEFAST on the same channel:
Addressing the encoders
(1) Addressing the TELEFAST encoders is as follows:
AD1
AD0
Action
0
0
Reading the TELEFAST 0 encoder
0
1
Reading the TELEFAST 1 encoder
1
0
Reading the TELEFAST 2 encoder 0
1
1
Reading the TELEFAST 2 encoder 1
If, for example, 2 encoders are wired on TELEFAST 0 and a single encoder on TELEFAST 2, the addressing becomes: 00-reading of the TELEFAST 0 encoder 0, 01-reading of the TELEFAST 0 encoder 1,10-reading of the TELEFAST 1 encoder and 11-reading of the TELEFAST 2 encoder.
