Example of connection: 2 TELEFAST are connected on the same channel
(Original Document)
About us
Illustration

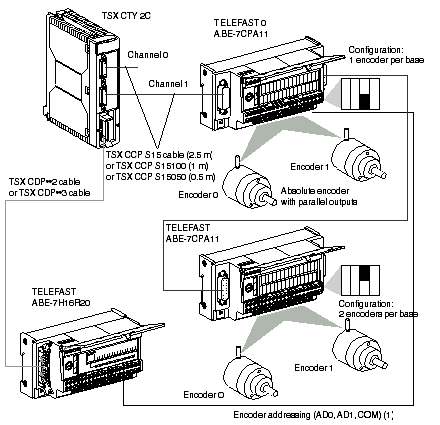

This diagram illustrates the connection of 2 TELEFAST on the same channel:
Addressing the encoders
(1) Addressing the TELEFAST encoders is as follows:
AD1
AD0
Action
0
0
Reading the TELEFAST 0 encoder 0
0
1
Reading the TELEFAST 0 encoder 1
1
0
Reading the TELEFAST 1 encoder 0
1
1
Reading the TELEFAST 1 encoder 1
