Example of connection: each TSX CTY 2C channel is only connected to one TELEFAST
(Original Document)
About us
Illustration

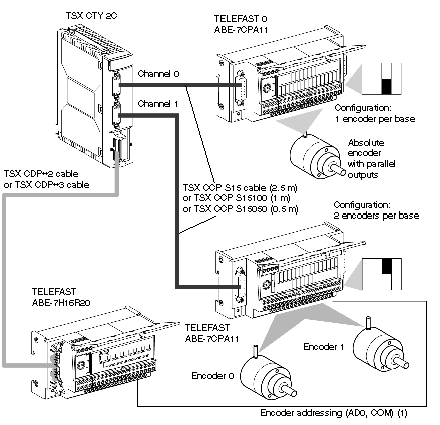

This diagram illustrates the connection of each TSX CTY 2C channel to one TELEFAST:
NOTE: (1) it is not necessary to wire the TELEFAST 0 (channel 0) encoder addressing because it has the default address of 00.
Addressing the encoders
Addressing the TELEFAST encoders is as follows:
AD1
AD0
Action
0
0
Read encoder 0
0
1
Reading encoder 1
1
0
No reading
1
1
No reading
