HE10 20-pin connector of a TSX CTY 2A/4A module
(Original Document)
About us
General
This connector is used to connect the auxiliary inputs, the outputs, the encoder supplies and the other sensors.
The TSX CTY 2A module comprises only one HE10 connector for channels 0 and 1.
The TSX CTY 4A module includes 2 HE10 connectors for channels 0 and 1 and channels 2 and 3 respectively.
Illustration

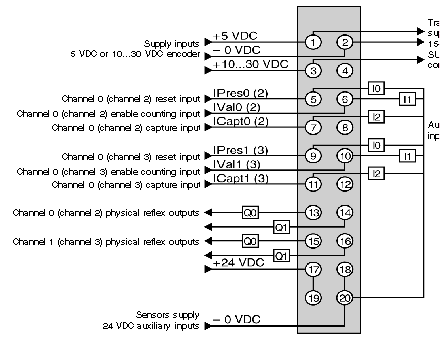

Wiring diagram for a HE10 20-pin connector:
Key:
24 VDC signals
Pins
Channel 0 (channel 2) auxiliary input:
Preset IPres0/2
5
Confirmation IVal0/2
6
Capture ICapt0/2
7
Channel 1 (channel 3) auxiliary input:
Preset IPres1/3
9
Confirmation IVal1/3
10
Capture ICapt1/3
11
Channel 0 (channel 2) reflex output:
Output Q0
13
Output Q1
14
Channel 1 reflex output:
Output Q0
15
Output Q1
16
Key:
Supplies
Pins
Encoder supply:
+5 VDC
1
- 0 VDC
2
+10...30 VDC
3
Sensor supply:
+24 VDC
17 or 19
-0 VDC
18 or 20
