15-pin SUB-D connectors Standard for a TSX CTY 2C module
(Original Document)
About us
General
These connectors are designed to connect the count sensors and the encoder supply:
NOTE: the pinout configuration of the different connectors is exactly the same.
Illustration

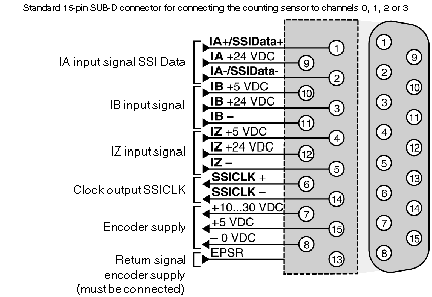

Pinout configuration of a 15-pin SUB-D connector:
Key:
5 VDC signal
Pins
+ IA input
1
- IA input
2
+ IB input
10
- IB input
11
+ IZ input
4
- IZ input
5
Encoder supply:
+5 VDC
15
-0 VDC
8
Encoder supply feedback
13
Key:
10…30 VDC signals
Pins
+ IA input
9
- IA input
2
+ IB input
3
- IB input
11
+ IZ input
12
- IZ input
5
Encoder supply:
+10…30 V
7
-0 VDC
8
Encoder supply feedback
13
Key:
Serial signals (absolute encoder with serial or parallel outputs, using a TELEFAST ABE-7CPA11 adapter)
Pins
+ SSI Data
1
- SSI Data
2
+ SSI CLK input
6
- SSI CLK input
14
Encoder supply:
+5 VDC
15
-0 VDC
8
Encoder supply feedback
13
