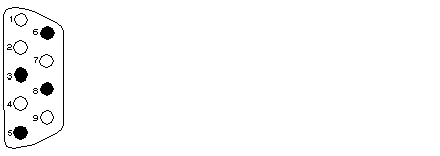

Number
|
Description
|
|---|---|
|
1
|
Shield
|
|
2
|
M24: 24 V output voltage ground
|
|
3
|
RxD/TxD-P: positive data transmission (RD+ / TD+)
|
|
4
|
CNTR-P: positive repeater monitoring signal (direction monitoring): not used
|
|
5
|
DGND: data transmission ground
|
|
6
|
VP: line termination bias voltage
|
|
7
|
P24: output voltage 24 V
|
|
8
|
RxD/TxD-N: negative data transmission (RD- / TD-)
|
|
9
|
CNTR-N: negative repeater monitoring signal (direction monitoring): not used
|
