Operating mode
(Original Document)
About us
Operation

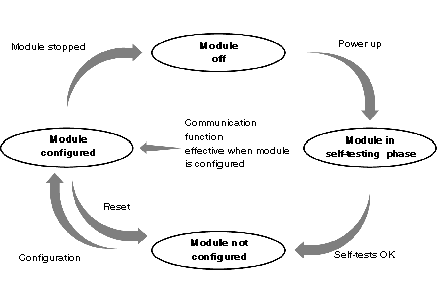

The following illustration shows how the module operates:
Behavior
Description of the different operating modes of the module:
Profibus DP in RUN mode
: data exchange on the bus.
Task in RUN mode
: input/output update.
Task in STOP mode
:
input update,
output fallback strategy (maintained or reset to zero).
