This diagram shows the dimensions of the RSX SCA 64 connection device.
The device can be mounted on one of the following:
-
board or panel, secured with 2 M4 screws (min. length 20mm)
-
DIN profile - Refs. AM1-DP 200 or AM1-DE 200 (Schneider catalog references)

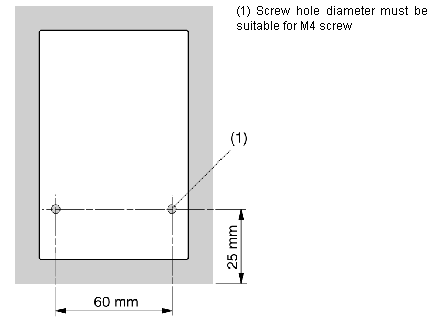

This diagram shows the plan for mounting on a board or panel.
