Multidrop is only carried out in 0 mA idle mode. The send cable and receive cable are set in parallel. The master is set by the software.

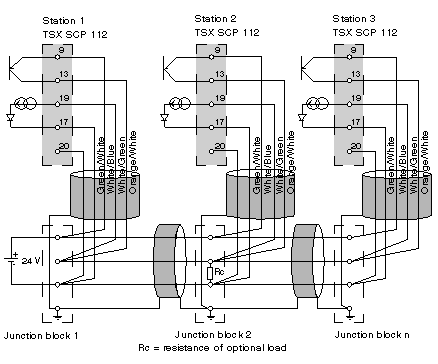

Example of connection of n TSX SCP 112 cards:
NOTE: The cable shielding must be connected at the shortest point in the junction blocks.
