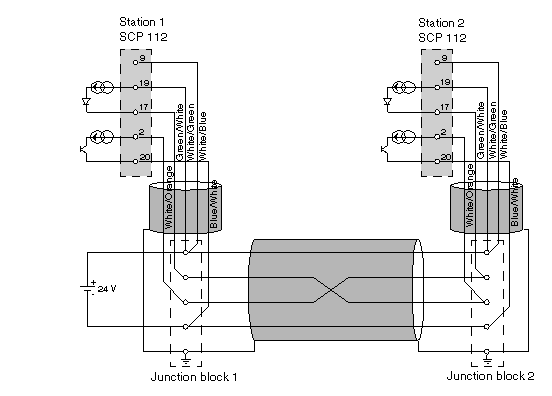

The diagram below describes the wiring principles for TSX SCP 112 loop current PCMCIA cards in point to point. Point to point is only carried out according to 20 mA mode when idle.
Illustration:
NOTE: Important: the cable shielding must be connected at the shortest point in the junction blocks.
