How to Access the Parameters of the PCMCIA Cards in Character Mode
(Original Document)
About us
At a Glance
This part describes how to access the configuration parameters of the character mode link through PCMCIA cards.
How to Access the Link
The following table shows the steps to follow in order to access the character mode link:
Step
Action
1
Open the hardware configuration editor.
2
Double click on the PCMCIA card slot.
Result: the card type selection window appears.
3
From the menu, click on one of the following PCMCIA cards then validate by clicking OK.
  • TSX SCP 111
  • TSX SCP 112
  • TSX SCP 114/1114
4

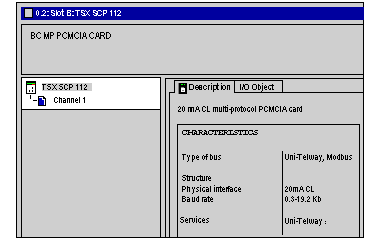

Double click again on the PCMCIA card slot.
Result:
5
Select channel 1.
6

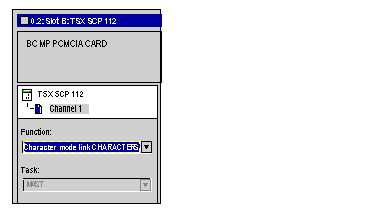

Select the function CHARACTER MODE LINK.
Example:
