The PCMCIA TSX SCP 112 card is used to connect a Premium/Atrium PLC station to a loop link with a current of 20 mA in point to point or multidrop.
NOTE: In all cases the power supply is: 24 V ± 20%, external to the TSX SCP 112 card, and must provide the current required for the current loop supply .
The TSX SCP CX 2030 cable is used for this type of connection (length 3 m).

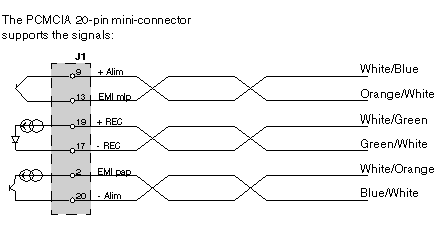

Description of the TSX SCP CX 2030 cable:
NOTE: A screw terminal block needs to be installed to connect the TSX SCP 112 card.
