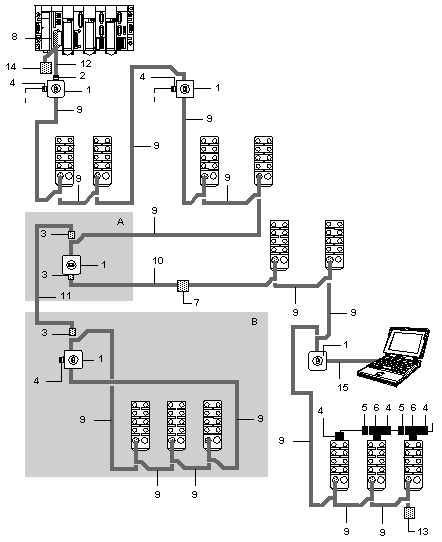

1

TSX EF ACC 99

Branch box.

This IP65 branch box can be used to perform 3 functions:

2

TSX EF CF 01

IP67 female connector, type M23.

IP67 female solder connector with M23-type ring, 6 contacts for Fipio bus connection and 24 VDC power supply. This type of independent connector is designed to be fitted to one end of TSX FP CA/CC/CP•00/CR cables.

3

TSX EF CM 01

IP67 male connector, type M23.

IP67 male solder connector with M23-type ring, 6 contacts for Fipio bus connection and 24 VDC power supply. This type of independent connector is designed to be fitted to one end of TSX FP CA/CC/CP•00/CR cables.

4

TSX EF CF 03

IP67 female connector, type 7/8" (24 VDC power supply).

7/8" type IP67 female screw connector, 5 contacts for Fipio bus connection and 24 VDC power supply. This type of connector is designed to be used for connecting the 24 VDC power supply of TSX ESF/EMF output or mixed modules and/or of the TSX EF ACC 99 branch box. The maximum authorized current in each contact on the connector is 8 A.

5

TSX EF CM 03

IP67 male connector, type 7/8" (24 VDC power supply).

7/8" type IP67 male screw connector, 5 contacts for linked connection using the TSX EF CT 03 T connector, designed to supply the preactuators with 24 VDC.

6

TSX EF CT 03

T connector (for linking 24 VDC power supply).

7/8" type IP67 T connector, 5 contacts for linking the 24 V power supply of the preactuators. The maximum authorized current for each contact on this connector is 8 A.

7

TSX EF CF 02

IP67 female connector, type M23.

M23, type IP67 female threaded solder connector, 6 contacts for extending Fipio TSX FP CA/CC/CP•00/CR cables.

8

TSX FP ACC 2

SUB-D 9 type female connector.

SUB-D type connectors with 9 contacts for Fipio/Fipway connection to PLCs. Can be used for linked or branched connection (90° high or low output, 45° high or low output).

9

TSX EF ACC 2•••

IP67 compound-filled Fipio cable for linking of modules.

Main compound-filled cable of a predefined length, 150 Ω twisted shielded pair, and a 1.5 mm2 power supply pair. Equipped with an M23 male connector and an M23 double female/female connector.

10

TSX FP CP •00

IP67 Fipio cable (1 cable pair, 2 1.5 mm2 power supply conductors, in 100 m or 500 m).

Main IP67, Fipio cable, 150 Ω twisted shielded pair, and a 1.5 mm2 power supply pair (Ø 9.5 mm). Free wire ends to be fitted with IP 67 M23 type TSX EF CF 01/02 and TSX EF CM 01 solder connectors.

11

TSX FP CC •00

Fipio branch cable (2 pairs, in 100 m or 500 m).

Branch cable, 150 Ω double shielded twisted pair (Ø 8 mm) for standard environments and building interiors. Free wire ends to be fitted with IP67 M23 type TSX CF 01/02 and TSX CM 01 soldered connectors.

12

TSX FP CA •00

Fipio link cable (1 pair, in 100 m, 200 m or 500 m).

Main cable, one 150 Ω shielded twisted pair (Ø 8 mm) for standard environments and building interiors. Free wire ends to be fitted with IP 67 M23 type TSX EF CF 01/02 and TSX EF CM 01 solder connectors.

13

TSX EF ACC 7

IP67 M23 type line terminator.

IP67 M23 type line terminator, to be positioned, depending on use, at one or both ends of the section (male type for direct connection).

14

TSX FP ACC 7

Line terminator

IP20 line terminator (batch of 2), to be positioned, depending on use, at one or both ends of the section.

15

TSX FP CG 0•0

PLC or programming terminal link cable

Branch connection cable for TSX FP 10/20 PCMCIA interface card for Premium, FT 2000 terminal and PC-compatible PLCs. This cable allows a PLC or a programming terminal to be connected to a TSX EF ACC 99 branch box.

XZ-LG 101

Identification labels.

Strip of 10 additional identification labels (a strip is already supplied with each module).

XZ-LG 102

IP67 sealing plugs.

Batch of 10 M12 sealing plugs for unused I/O connectors. Each module is supplied with two plugs.

170 XTS 050 00

IP67 sealing plug.

Sealing plug for M23 connector.
