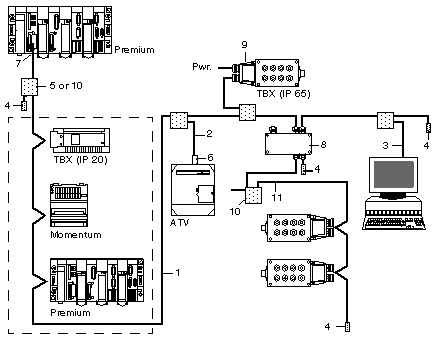

Number
|
Reference
|
Description
|
|---|---|---|
|
1
|
TSX FP CA/CR•••
|
Trunk cable
|
|
2
|
TSX FP CC•••
|
Branch cable
|
|
3
|
TSX FP CE030
|
Connection cable for terminals and PCs
|
|
4
|
TSX FP ACC7
|
Line terminator
|
|
5
|
TSX FP ACC4
|
Branching device
|
|
6
|
TSX FP ACC2
|
Connector for daisy-chaining or branching
|
|
7
|
TSX FP ACC12
|
Connector for Premium PLC
|
|
8
|
TSX FP ACC6
TSX FP ACC8
|
Electrical repeater or
fiber optic repeater if fiber optic link used
|
|
9
|
TBX BLP 10
|
Connector for connecting IP 65 TBXs
|
|
10
|
TBX FP ACC10
|
Branching device
|
|
11
|
TSX FP CF•••
|
Remote power supply cable
|
