Fipio Architecture with OZD FIP G3

Description

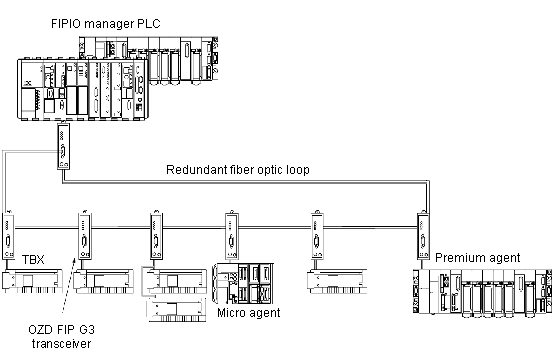

Example of a Fipio architecture:

Most Schneider products which operate on the Fipio bus can be connected to the OZD FIP G3 transceiver:

As Fipio manager devices:
- Premium: processors with an integrated FIPIO link: TSX P57•54 and TSX PCXI57 354 programmed with Control Expert (version V1.1 or later).
As Fipio bus agent devices:
- TBX equipped with an LEP 030 communication module
- Magelis XBT equipped with a TSX FPP 10 card
- PC equipped with a TSX FPC 10 or PCMCIA FPP20 ISA card
- Momentum
- TSX Micro TSX 372• and TSX Premium TSX/PMX/PCX 57 equipped with a TSX FPP 010 card
- Third-party devices which conform to the standard Fipio profiles defined in the FipConnect connection program.

NOTE: TSX FP ACC6 and TSX FP ACC8M repeaters are not compatible with architectures using OZD FIP G3 transceivers.

NOTE: Fipio configurations in WorldFip mode are excluded from these architectures.

NOTE: The TSX DM OZD 01 manual gives all the characteristics of HIRSCHMANN OZD FIP G3 transceivers.
