If the processor has a built-in Fipio link, the Fipio bus is shown in the configuration directory of the project browser with the number 2. This value cannot be modified.
The project browser displays all the Fipio devices in the Fipio
configuration screen. Each device is displayed with its address number. Depending on the type of device configured, the following items may be displayed below the device:
-
a communicator,
-
a base module,
-
an extension module.
Whenever a Fipio device is added/removed to/from the Fipio bus, it also appears/disappears on/from the Fipio bus in the project browser.

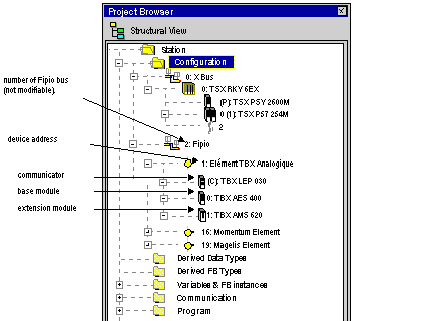

The following illustration shows the Fipio bus with its devices in the project browser:
