Architecture of Fipio bus with connection auxiliaries (IP20)
(Original Document)
About us
At a Glance

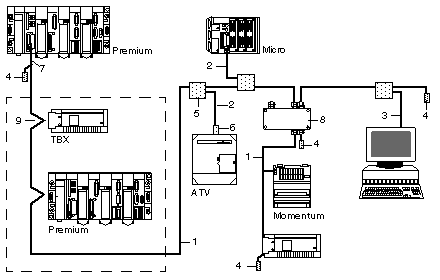

The architecture below shows the Fipio bus and the different devices (IP20) of which it is composed.
Description
The following table shows the devices on the bus:
Number
Product reference
Description
1
TSX FP CA/CRxxx
Trunk cable
2
TSX FP CCxxx
Drop cable
3
TSX FP CE030
Connection cable for terminals and PCs
4
TSX FP ACC7
Line terminator
5
TSX FP ACC3
or TSX FP ACC4
or TSX FP ACC14
Branching devices
6
TSX FP ACC2
Connector for daisy-chaining or branching
7
TSX FP ACC12
Connector for Premium PLC
8
TSX FP ACC6
TSX FP ACC8
Electrical repeater or
fiber optic repeater if fiber optic link used
9
TBX BLP 01
Connector for connecting TBXs
The Fipio reference manual (TSX DR FIP) specifies the characteristics of each device.
