How to Access the SET and RESET AS-I Output Commands
(Original Document)
About us
At a Glance
These commands are used to assign the values 0 (RESET) or 1 (SET) to the outputs of an AS-i slave.
The status of the output affected by one of these commands is temporary and can be modified at any time by the application.
Procedure
The following table presents the procedure for assigning a value of 0 or 1 to the selected AS-i slave’s outputs.
Step
Action
1
Open the Fipio/AS-i gateway to debug.
2
Access the diagnostics screen by clicking on the Debug tab.
3
Select a slave in the AS-i Configuration area.
4

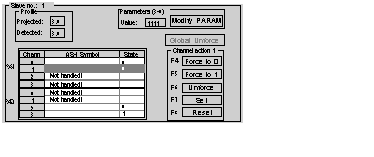

Select the channel to be modified in the Slave area table.
Result: The channel can be modified using the buttons in the Channel action field.
5
Select the required function (buttons Set or Reset) in the Channel action field.
