Connections

At a Glance

The TBX SAP 10 module is connected to the AS-i bus directly via the removable 40-pin screw terminal block.

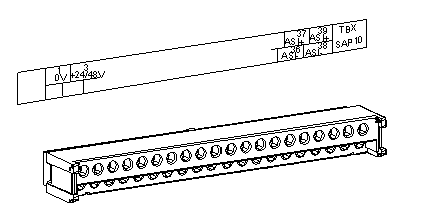

Illustration:

Two terminals are provided for each polarity:

AS-i+ (brown wire of the profiled AS-i ribbon cable) on terminals 37 and 39,

AS-i- (blue wire on the profiled AS-i ribbon cable) on terminals 36 and 38.

In order to facilitate connection when cables with a cross-section of 1.5 mm2 or 2.5 mm2 are used, a bridge is created on the bridge is made on the circuit board.
