A TBX SAP 10 AS-i master on the Fipio network is identified by its address connection point. The number of the address connection point represents the physical address of the AS-i module on the Fipio network and can have a value between 1 and 127.
On Fipio, the address 0 is reserved for the bus manager PLC. The address 63 is reserved for the programming terminal.
The Fipio address of the AS-i master module is configured using the micro-switches located above the TBX BLP 01 connector used for connection to the bus.

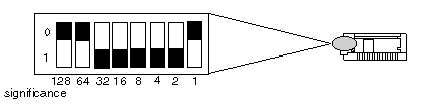

These 8 micro-switches allow binary coding, as illustrated below, for up to a maximum of 62 devices per architecture.
NOTE: Modification of the address is not acknowledged until after power for the TBX SAP 10 has been switched off / switched on. If the address is modified while the TBX SAP 10 is switched on, this can trigger an internal fault and disconnection from the Fipio network.
