Architecture of the Fipio bus with auxiliary connectors (IP20)
(Original Document)
About us
At a Glance

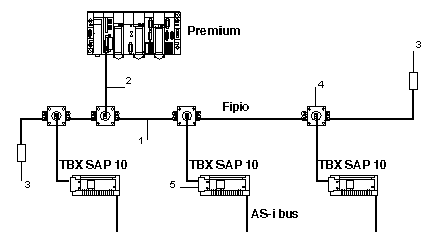

In a Fipio architecture, the TBX SAP 10 module can be integrated with various types of device (IP20).
Illustration
Description
The following table presents the devices on the bus:
Number
Product reference
Description
1
TSX FP CAxxx
Trunk cable
2
TSX FP CCxxx
Drop cable
3
TSX FP ACC7
Line terminator
4
TSX FP ACC4
Junction boxes
5
TBX BLP 01
Connector for connecting the TBX to Fipio
