When Global Data is activated, the status of a Global Data variable is displayed on the screen.

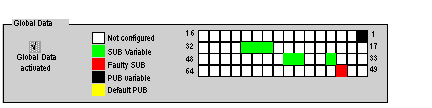

The window is displayed as below:
A Global Data variable can have the following status:
-
Not configured: white
-
SUB variable: subscribed variable received in the health timeout limit, green
-
Faulty SUB: subscribed variable not received in the health time out limit, red
-
PUB variable: published variable, green
-
Default PUB: published variable not updated within the allotted period, yellow
