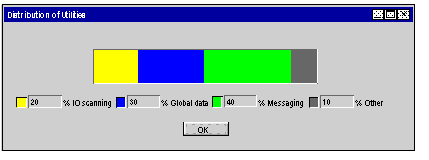

When bandwidth control is activated, the load of module TSX ETY 4103/PORT/5103 is displayed on the screen:
This graphic displays the actual load distribution, between I/O Scanning, Global Data, Messaging and other services:
-
%IO Scanning (yellow)
-
% Global Data (blue)
-
% Messaging: (green)
-
% Other: (gray)
If you wish to modify this distribution, return to
configuration.
