I/O Scanning Debugging Parameters

Introduction

When I/O scanning is activated, the status of each configured device is displayed on the screen.

NOTE: There is no I/O scanning for the TSX WMY 100.

I/O Scanning Dialog

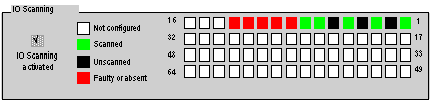

The window is displayed as below:

A device referenced in the I/O scanning configuration tab can have the following states:

Scanned: green
Not configured: white
Unscanned: black (caused by I/O scanning not being activated, none selected in configuration)
Faulty or absent: red

NOTE: In the cases of Not configured and Unscanned, no Modbus request is generated towards the device.
