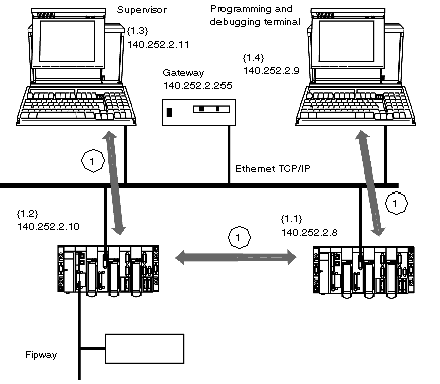

The following figure shows the installation of a TSX ETY 110 connected to an existing TCP/IP network.
Recommended Operating Mode
-
IP addressing must be managed because connection is made to a non-private TCP/IP network.
-
Inter-PLC communication uses UNI-TE on TCP/IP.
-
Communication between the PLC and the supervisor or the programming terminal uses UNI-TE on TCP/IP.
-
The frame format used is Ethernet II.
Configuration of the Local Address of the Module
The IP addresses must be managed, the Configured IP address mode is selected, you must enter the IP parameters.
Configuration of the Connections of the Module
You must enter both the X-Way address and the IP address of the devices with which the module must communicate.
Click on the Access control button to activate this control, then check the corresponding box in the Access column.
The maximum number of connections which can be opened in the application can be adjusted.
Ethernet Configuration of the Module
The Ethernet frame format selected for TCP/IP is Ethernet II because, in the example, the terminals use this format.
