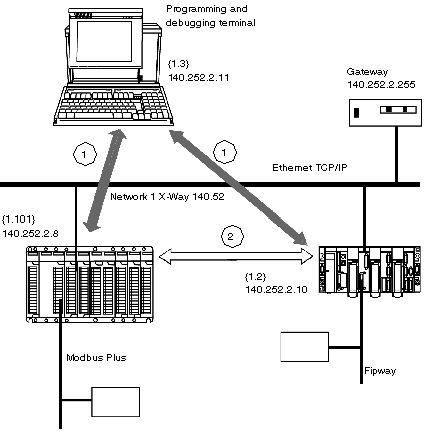

The following figure shows the installation of a TSX ETY 110 in a Premium system for communicating with a Quantum PLC:
Recommended Operating Mode
Configuration of the Module’s Local Address
The IP addresses must be managed, the Configured IP address mode is selected, you must enter the IP parameters.
Configuration of the Module Connections
You must enter both the X-Way address and the IP address of the devices with which the module must communicate.
Click on the Access control button to activate this control, then check the corresponding box in the Access column.
The maximum number of connections in the application can be adjusted.
NOTE: Communication with the Quantum PLC requires the Modbus protocol to be configured.
Ethernet Configuration of the Module
The Ethernet frame format selected for TCP/IP is Ethernet II because, in the example, the terminals use this format.
