The TSX ETY 4103/5103 modules are single-format modules that are inserted in a slot on the main or extension rack of a Premium PLC station. The TSX ETY PORT solution is a TSX ETY 4103 module built in to the processor and has the same characteristics as the TSX ETY 4103 module.
1

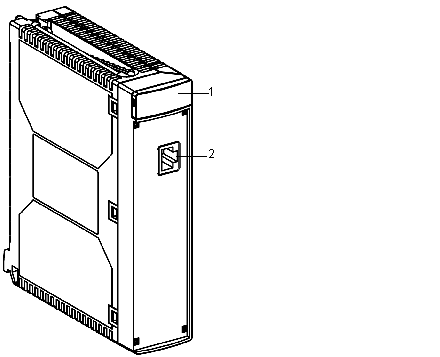

Display panel indicating module status:
2
Standard connector for 10/100 BASE-T (RJ45) interface.
The display panel LEDs are:
-
RUN (green)
-
ERR (red)
-
COL (red)
-
STS (yellow)
-
TX (yellow)
-
RX (yellow)
Elsewhere in this guide is a detailed explanation of these
LEDs.
