Driver Debug Screen
(Original Document)
About us
At a Glance
This screen is used to deactivate the saving of certain operations carried out by the communication driver in a trace file.
Illustration

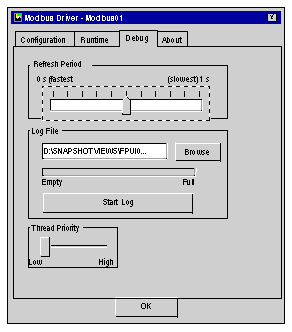

You can access the debug screen dedicated to the Modbus driver by selecting the Debug tab in the Driver Configuration screen:
Description
This table describes the different areas which make up the debug screen:
Area
Description
Refresh Period
Allows the screen refreshing period for the driver control screen to be defined within a range of 0s to 1s.
Log File
This area contains:
  • the description of the path where the trace file has been saved,
  • a bar graph showing the fill level of the trace file.
  • a button to start or stop saving in the trace file.
Thread Priority
Adjusts the priority of the driver with regard to other tasks executed in Windows.
The default setting is "Low" .
OK
This button allows the window to be represented as an icon.
